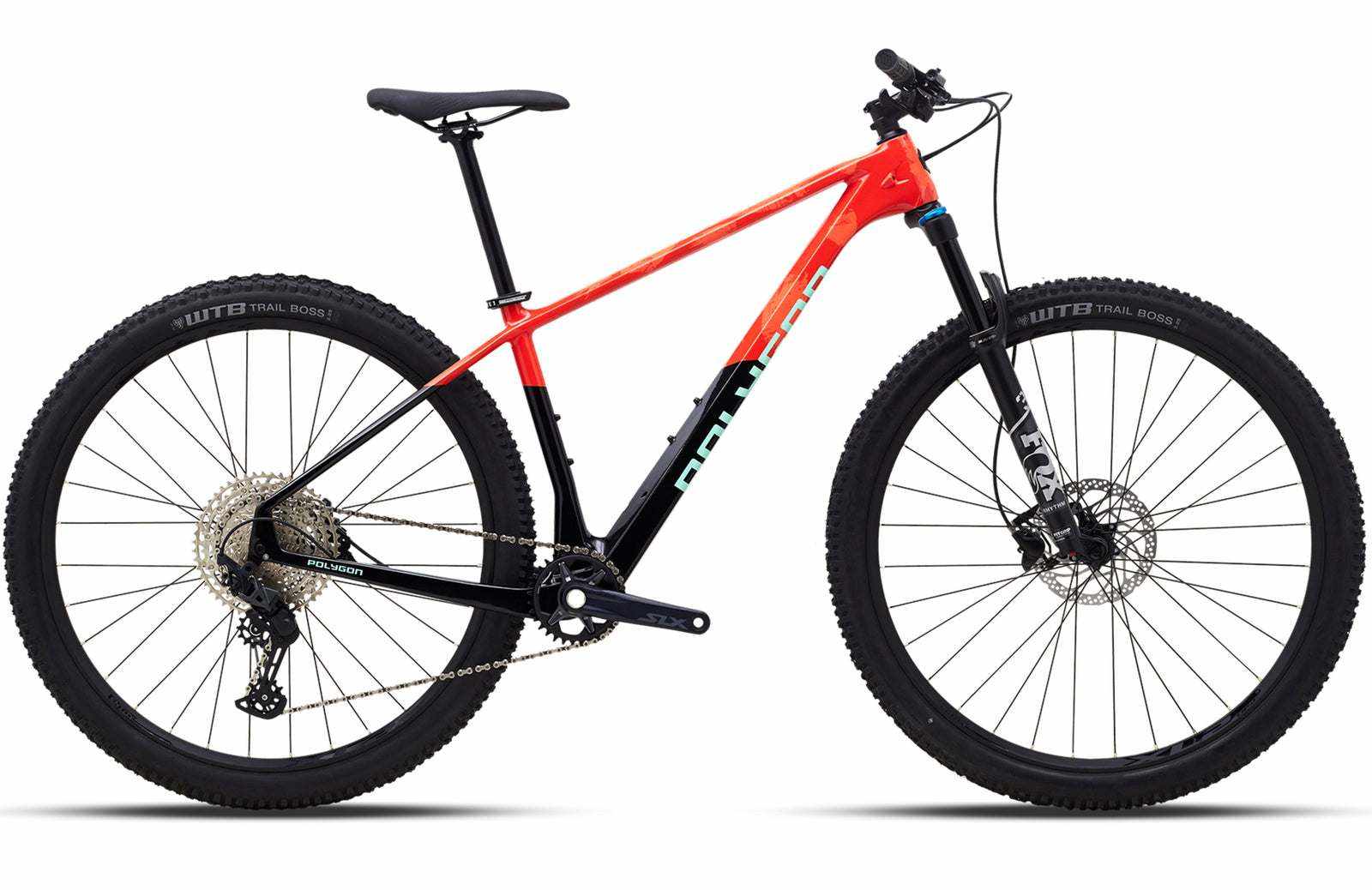

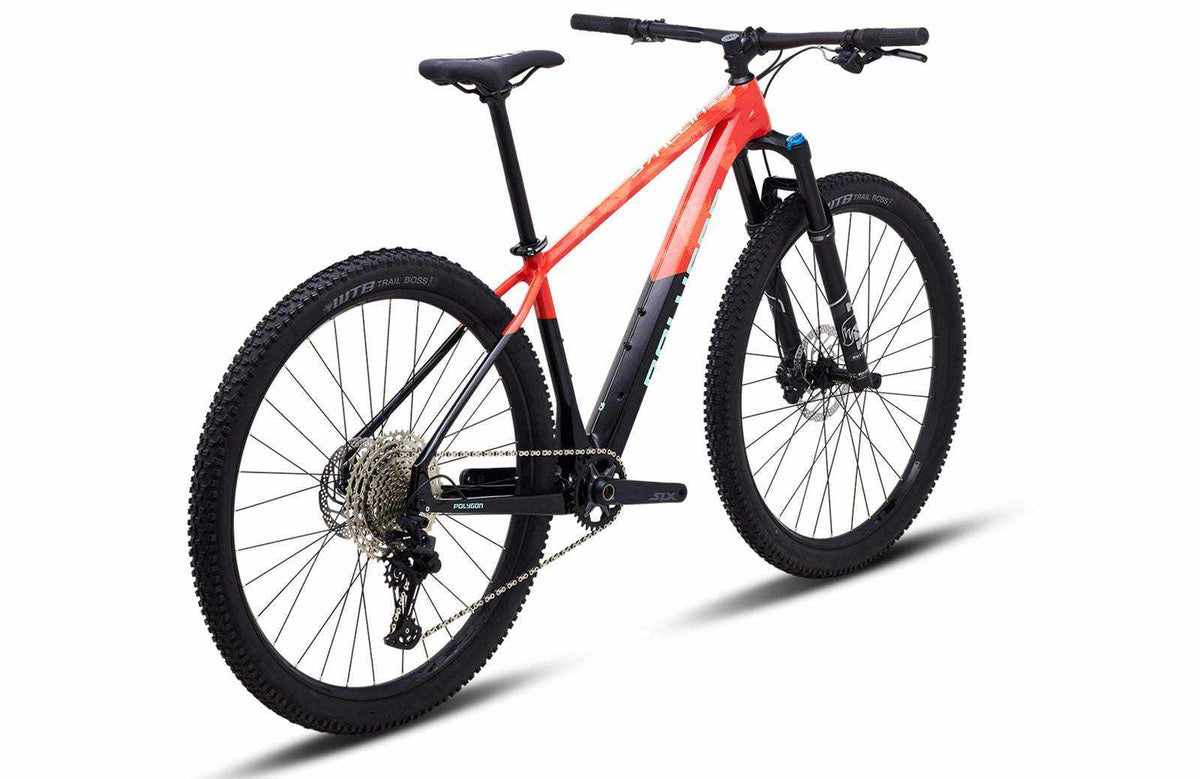

29 Inch Size L Full Suspension Mountain Bike | Red/Black

Race Bike – High Performance Edition

This bike is engineered for riders aiming to climb quickly, finish on the podium, or explore challenging backcountry trails. Featuring a high-performance Carbon Fibre frame and race-ready components, this model delivers speed, efficiency, and newfound confidence, taking your riding to new levels.

Key Features

• Tuned for Speed: The Carbon frame is laterally stiff, optimised to surge forward efficiently on every pedal stroke.

• Race-Ready Suspension: Features a performance-level 32 fork with 120mm travel for superior control and handling on demanding XC terrain.

• Hydration Ready: Frame design accommodates two full-size drink bottles, allowing you to explore further.

• Clean and Durable: Internal cable routing prolongs cable life and maintains a sleek aesthetic.

Detailed Technical Specifications

Sizing & Weight

• Available Size: Large (Recommended for riders 177-186cm)

• Wheel Size: 29"

• Colour: Red/Black

• Weight: 11.9 kg

Frame & Suspension

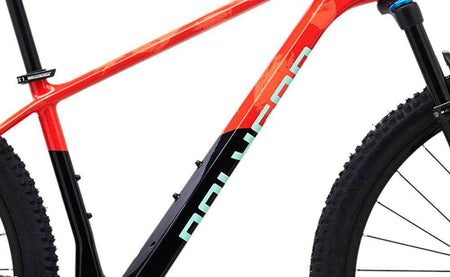

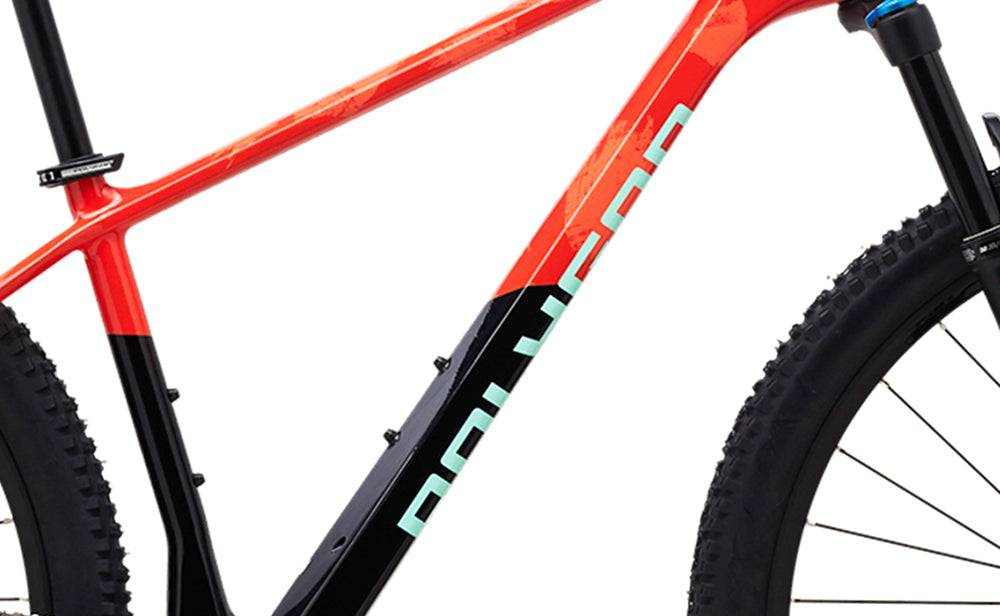

• Frame: ACX XC Performance Carbon Fibre, Pressfit BB92, Internal Cable Route, Boost 12x148mm Rear Thru-Axle.

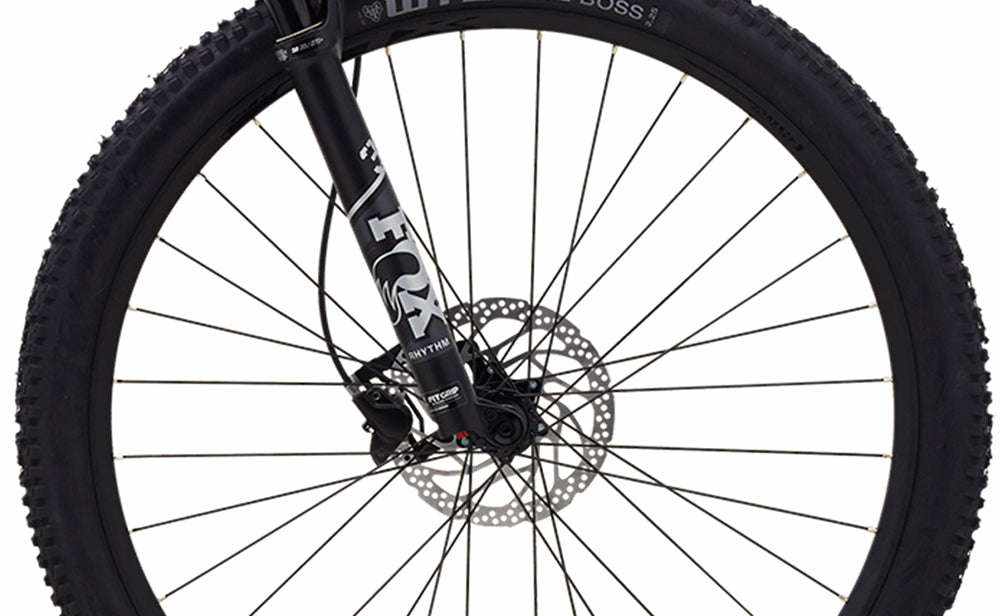

• Fork: Performance Air Fork with 120mm Travel, Rebound & Sweep Adjustment, Tapered Steerer, Boost Thru-Axle 15x110mm.

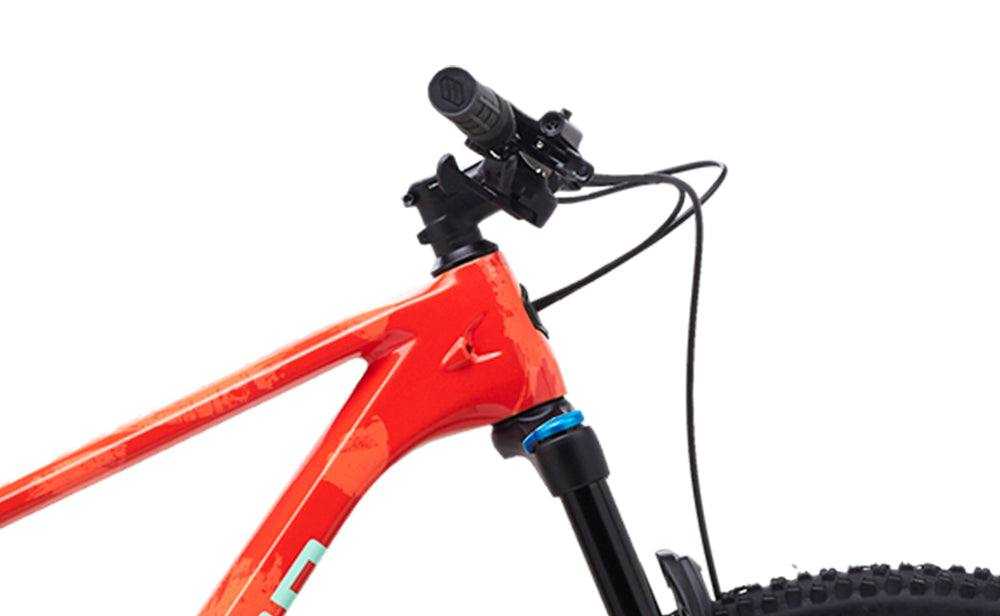

• Headset: Tapered (IS 42/28.6 | IS 52/40 spec).

• Front Axle: 15x100mm QR Thru Axle.

• Rear Axle: Thru Axle QR63-M BK 12x174mm Bolt On.

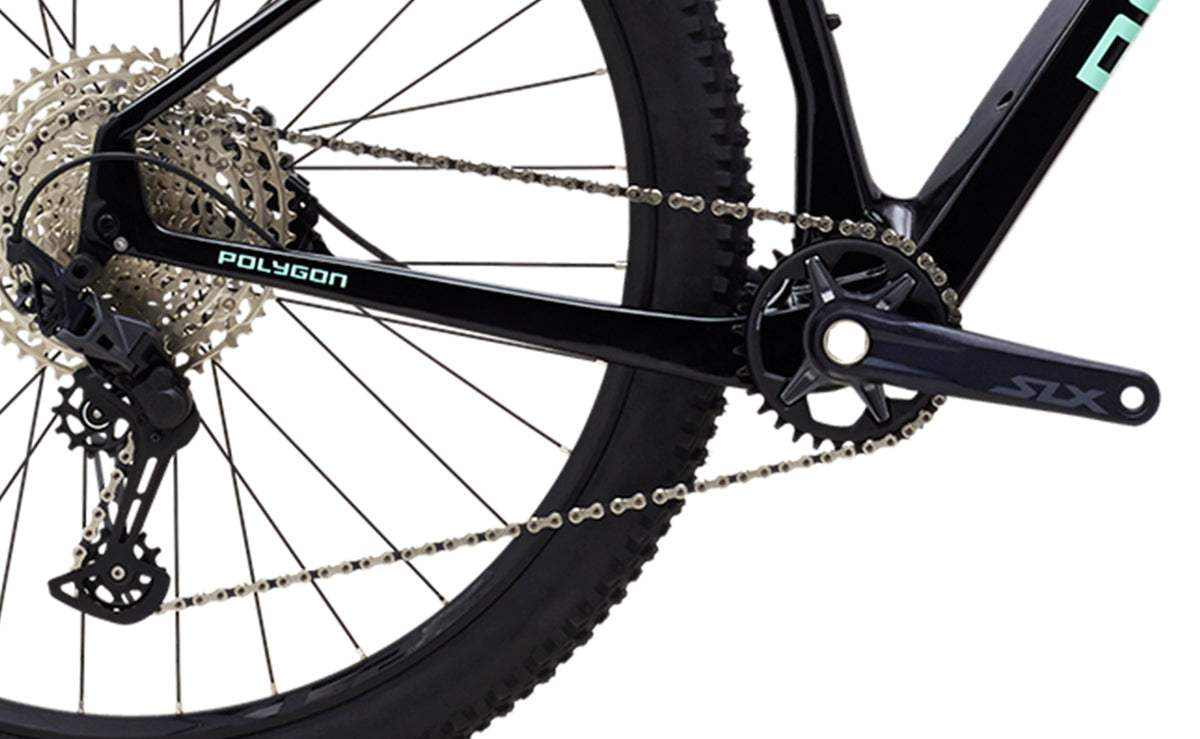

Drivetrain (Shifting & Gears)

• Rear Derailleur: 12-Speed Shadow Plus Rear Derailleur.

• Shifting Lever: 12-Speed Trigger Shifter.

• Crankset: 12-Speed Chainwheel 32T.

• Bottom Bracket: Press-Fit BB.

• Cassette: 10-51T Wide-Range, 12-Speed (Offers a massive range of gears for climbing).

• Chain: 12 Speed Chain.

• Pedals: Alloy Flat Pedal.

Braking System

• Brakes F/R: Hydraulic Disc Brakes (Offers powerful, precise control).

• Brake Rotor: Centre-Lock Rotor.

• Disc Specification: 160mm (Rear) / 180mm (Front).

Wheels & Tyres

• Rims: Double Wall Alloy Rims, 30mm Internal Width, Tubeless Tape Installed.

• Tyres: Trail Boss 29 \times 2.25"

• Hub Front: Centre-Lock Hub, Thru Axle 15x110mm, 32h.

• Hub Rear: Centre-Lock Hub, 12x148mm 32h.

• Spokes: 14g Steel (Drive: 294mm, Non-Drive: 296mm).

• Valve Type: French Valve (Presta).

Cockpit & Seating

• Handlebar: Alloy Handlebar 740mm.

• Stem: Alloy Stem 60mm.

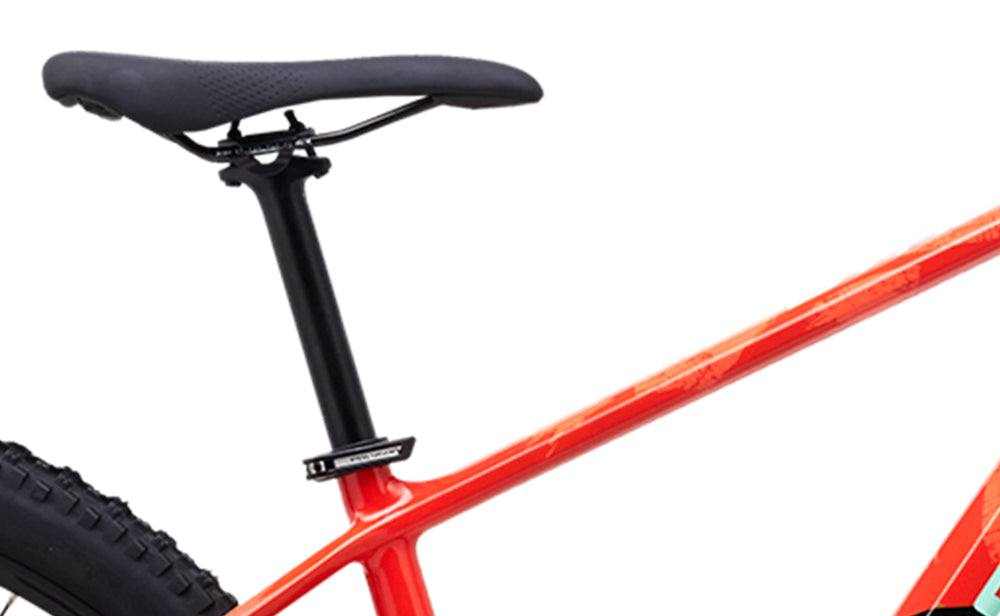

• Saddle: XC Performance Saddle, Steel Rail.

• Seat Post: Alloy Seat Post, Zero Offset, 27.2 x 350mm.
